MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
OPERATING
RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
r/min |
A |
r/min |
A |
mN-m |
g.cm |
W |
mN.m |
g.cm |
A |
|

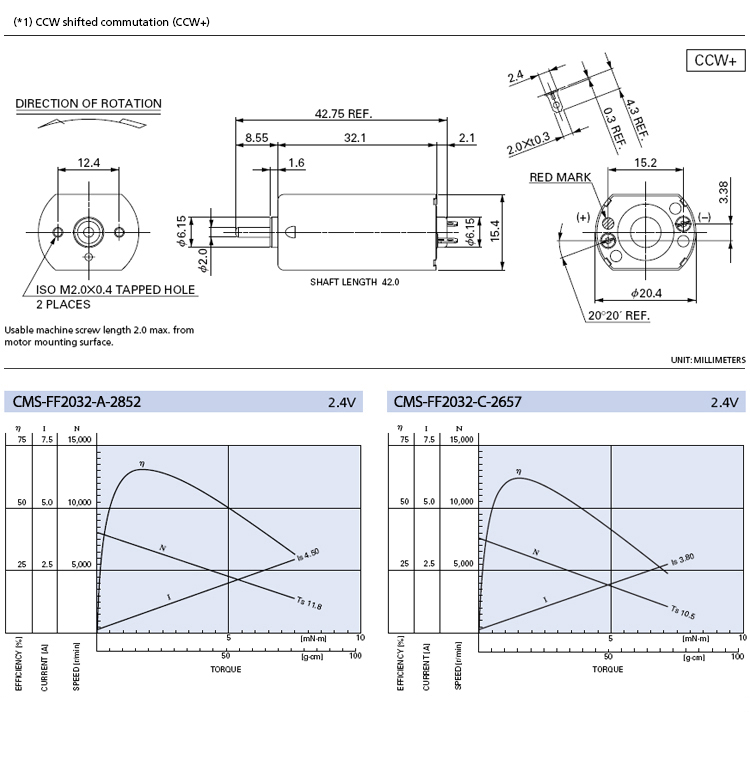

CMS-FF2032-A-2852(*1) |
1~3 |
2.4V CONSTANT |
8100 |
0.15 |
6850 |
0.82 |
1.82 |
18.6 |
1.30 |
11.8 |
120 |
4.50 |
|
CMS-FF2032-B-4022(*1) |
1.0~1.5 |
1.2V CONSTANT |
9400 |
0.40 |
7830 |
1.99 |
1.76 |
17.9 |
1.44 |
10.5 |
107 |
9.90 |
|
CMS-FF2032-C-2657(*1) |
1~3 |
2.4V CONSTANT |
7700 |
0.13 |
6500 |
0.70 |
1.64 |
16.7 |
1.11 |
10.5 |
107 |
3.80 |
|
CMS-FF2032-D-4026(*1) |
1.0~1.5 |
1.2V CONSTANT |
8300 |
0.30 |
6990 |
1.60 |
1.64 |
16.7 |
1.20 |
10.4 |
106 |
8.55 |
|
| |
 |
|
|
|
|
|
